Portable power. Beautifully refined. The future of portable USB charging starts here contact us to power your space QIKPAC CARRY proven power. timeless design. exceptional value Same OE quality. Same reliability. QIKPAC CARRY brings together OE’s trusted engineering with a refined, design-led aesthetic, delivering dependable portable power without compromise.This edition
What is the orange button for? The orange button allows the user to check the battery charge status (short press), or to put the battery to sleep or wake it up (long press). For more information, see the QIKPAC datasheet. Do you need more information? Our expert team are ready
Are QIKPAC batteries easy to install into furniture? QIKPAC batteries are designed to form part of OE’s patented “QIKFIT” framework meaning all modules have a tool-less “press & click” install. All that is required is a standard width cut out at 41.5mm and a mounting surface 1-3mm thick. The length
qikpac charging cart CHARGING CART FOR QIKPAC CARRY BATTERIES Features • Available in black or white with 12 batteries• Charges 12 batteries from flat to full in 9–11 hours• Casters for added mobility inquire now see technical information Product Highlights Product Description The QIKPAC CHARGING CART provides a compact, mobile
What can ANIMATE power? Whilst ANIMATE includes several components and “bringing the furniture to life” even covers mains operated power sockets, the pre-eminent feature of ANIMATE is the TUF-HP USB charger module. The Type-A USB (the more familiar larger connector) can output up to 12W of power, which is sufficient
Why do I need a PSU (Power Supply Unit)? The PSU converts incoming AC power to DC power to be stored in the QIKPAC battery. The PSU can be mounted into furniture alongside the battery and charged with a removable power cable. Alternatively, the battery can be removed from the
The QIKPAC doesn’t seem to work, what is the problem? If you have just received the QIKPAC, then it is in Sleep Mode – you can awaken it either by charging it or pressing and holding the button for 5 seconds. Otherwise, it may have entered Sleep Mode as it
will my TV run on the QIKPAC battery Yes! Your TV can become completely portable with QIKPAC Modern flat screen TVs are highly efficient and use a comparatively small amount of power to run. This makes them excellent candidates to be powered by the OE QIKPAC battery. The majority of
How are watt-hours calculated? • Watt-Hours (Wh) are calculated as : Watts x Time (Hours)• 1 Watt x 1 Hour = 1 Wh• 1 Watt x 10 Hours = 10 Wh (e.g. standard cell phone battery)• 200 Watts x 1 Hour = 200 Wh (e.g. 200 Watts used in 1
How does QIKPAC work? QIKPAC batteries store a total of 240 watt-hours of energy. 200Wh energy is available for use, released as 24V low-voltage DC (direct-current). You can provide power for laptops, phones and other devices and power other DC features like LED lighting, WiFi routers, wireless chargers and more
How do I update the firmware on QIKPAC If the firmware for your QIKPAC needs to be updated, please return to us for the update. In the future this will be able to be completed by the end user or facilities manager. Do you need more information? Our expert team
Do you accept returns of QIKPAC batteries? OE does accept returns of unopened QIKPAC batteries to our Wakefield facility. The return shipping cost will be chargeable to the customer and there will be a 25% restocking fee. It is a legislated requirement for transporting Lithium Ion batteries that they be
What happens if too many users overload an ANIMATE PSU (Power Supply) or QIKPAC battery? All outputs on ANIMATE PSUs or QIKPAC Batteries are overload protected. For the PSU, if multiple users attempt to draw too much power (eg: due to 60W charging from multiple TUF-HP) then initially the PSU
If the QIKPAC Battery or PSU is built into a seat, is there any heat development, anything to consider when designing the units directly into furniture? All parts of the ANIMATE system have been tested to their respective safety standards and comply with the limits set for them in terms
How do you ship QIKPAC batteries? QIKPAC batteries contain Lithium-Ion (Li-ion) cells which are classed as hazardous materials. As such they are individually packed in UN38.3 compliant packaging. They should be kept in that packaging until they are either fitted in the furniture or get to the site for use.
What is the difference between Type-A and Type-C USB? Type-A USB was designed as a connector for connecting peripheral devices, with low power consumption, such as keyboards or mice. Over recent years it has been adopted as a phone/tablet charging connector, but that is limited to 12W, at best, and
If the QIKPAC Battery or PSU is built into a seat, is there any heat development, anything to consider when designing the units directly into furniture? All parts of the ANIMATE system have been tested to their respective safety standards and comply with the limits set for them in terms
What is a maximum cable length in a 24V installation? All long cables suffer voltage drop due to the resistance of the wires within, where the resistance increases as the wires get thinner. When deploying ANIMATE, using the ANIMATE PSU (Power Supply) and TUF-HP (with GST08 0.75mm2 cables) we suggest

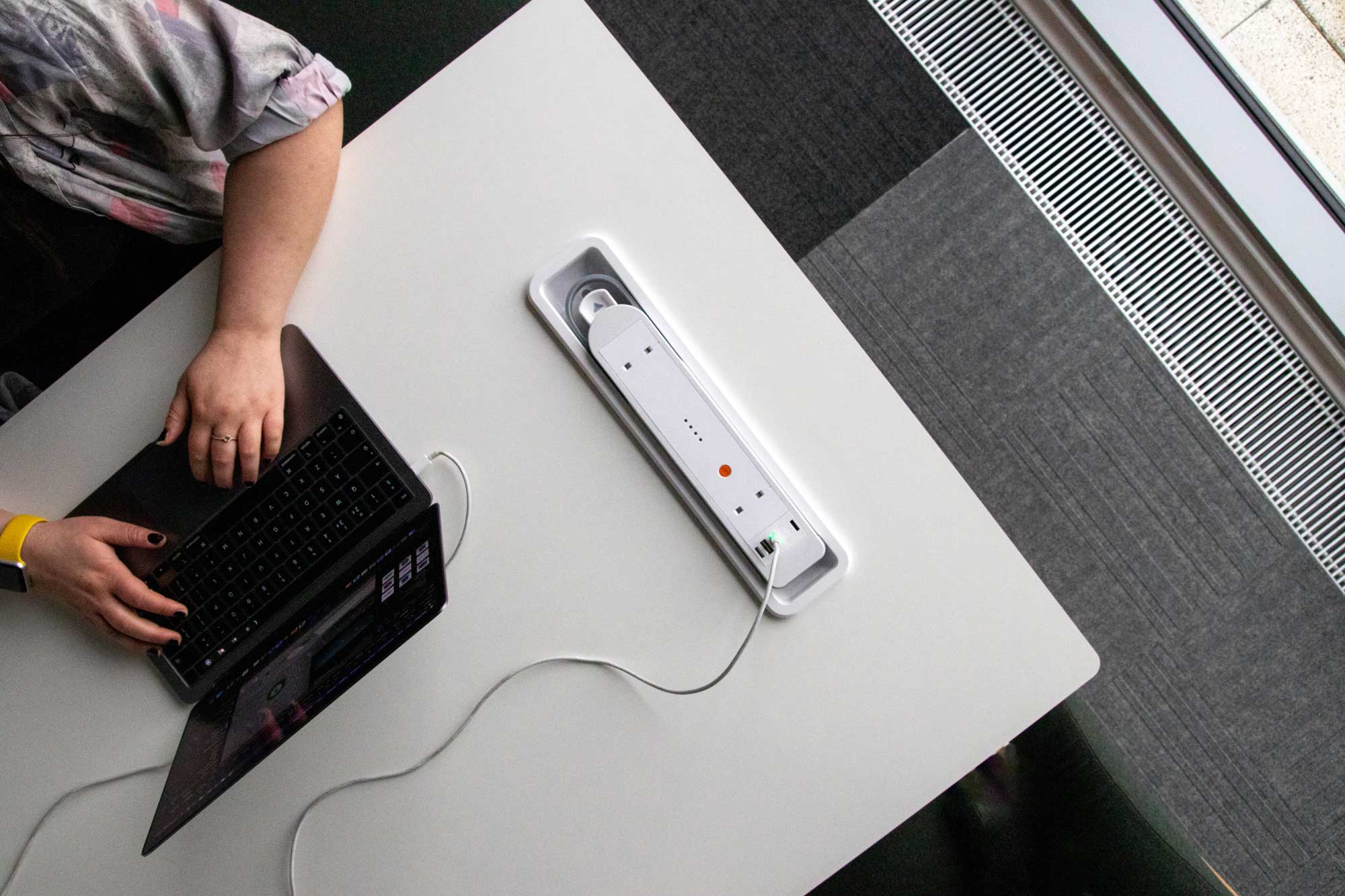

What is QIKDOC? QIKDOC is a docking station for the QIKPAC Portable Battery. It can be sunk into surfaces or mounted under desk edges and provides a dedicated position for the QIKPAC Portable Battery to be positioned during use. QIKDOC can be specified as QIKDOC LOCATE (with no electrical connections)
Are ANIMATE components protected against spillage? IP ratings identify levels of protection of people from, and water ingress to, hazardous parts. Within the ANIMATE range, the user-facing TUF-HP USB modules are completely low voltage (under 30V DC). TUF-HP USB modules have been designed to minimize the effect of inadvertent spillage,
How do I know when the QIKPAC is fully charged, can it be overcharged? All four LEDs will be on solid. It is not possible to overcharge the battery as all the charging is controlled within each QIKPAC. Do you need more information? Our expert team are ready to answer
What is the warranty for ANIMATE? Products within the animate range are warranted for 2 Years from the date of delivery. Please consult our full warranty document HERE Do you need more information? Our expert team are ready to answer anyother questions that you may have. get in touch with
Is ANIMATE easy to install? ANIMATE refers to a system of components that when combined can power your furniture and bring it to life, allowing people to charge their mobile devices anywhere – whether mobile or fixed. • Electrically, it is a complete “Plug and Play” system, requiring little or
what happens if a user damages a TUF-HP ANIMATE refers to a system of components that when combined can power your furniture and bring it to life, allowing people to charge their mobile devices anywhere – whether mobile or fixed. • Electrically, it is a complete “Plug and Play” system,
Can QIKPAC be charged directly from my solar panels? Yes, QIKPAC batteries can be charged from your renewable energy source. We can help take your QIKPACs completely off grid. The batteries need a regulated 29 – 31V supply. For solar a MPPT (maximum power point tracker) is needed. MPPTs then
How long do QIKPACs take to charge? One QIKPAC will charge in 5-8 hours, for more than one you can divide the useable capacity of the battery.(200Wh) by the power of the QF PSU 70W. 1-2 batteries – 5-8 hours. 3 – 8-11 hours. Do you need more information? Our
Can the Power Supply Unit (PSU) charge multiple batteries? The PSU can comfortably charge up to 3 batteries simultaneously. There may be instances where 4 batteries can be charged simultaneously, but note that this will increase charge time. The QIKPAC Charger Base has a built-in PSU and can therefore charge
Can ANIMATE power a large screen TV/media wall? TOP TIP: OE has a shortlist of various size DC-powered TVs and monitors that are compatible with our QIKPAC batteries. Using these appliances is recommended for most efficient battery usage with your furniture and most cost-effective use of the ANIMATE system.If you
Can the ANIMATE PSU power multiple TUF-HP? ANIMATE refers to a system of components that when combined can power your furniture and bring it to life, allowing people to charge their mobile devices anywhere – whether mobile or fixed. • Electrically, it is a complete “Plug and Play” system, requiring
Will ARC-H LD charge through solid core material? ANIMATE refers to a system of components that when combined can power your furniture and bring it to life, allowing people to charge their mobile devices anywhere – whether mobile or fixed. • Electrically, it is a complete “Plug and Play” system,
lifespan of the Qikpac battery The QIKPAC BATTERY is the heart of the Animate range. And because we design products for longevity and durability, we’ve put much thought into QIKPAC’s service life. We’ve chosen Lithium-ion as our storage medium because of its capacity to store a lot of energy in
What is the weight of a QIKPAC battery? Approximately 1.3kg. Do you need more information? Our expert team are ready to answer anyother questions that you may have. get in touch with an expert Looking for something else?
What is the QIKPAC CARRY? QIKPAC is a panel mounted battery in its raw form. However, when integrated into QIKPAC CARRY, either with or without a TUF-HP module) it immediately becomes a portable battery with a carry handle to use around the workplace. With a TUF-HP installed, the user has
How can the 24V TUF HP used and connected with other than OE PSU’s, with existing 24V supplies? TUF-HP will work on any stable 24V-30V DC supply. OE can manufacture adaptor cables to allow connection between the GST08 TUF-HP modules and the building DC supply – please contact us to
How many QIKPACs can be connected together? QIKPACs are built to be stacked with all the internal protections built into the design. If you would like to stack more than 4, then please contact us to discuss to ensure this is done in the most efficient way possible. In theory,
How do I dispose of old/damaged batteries? When Lithium Ion batteries reach the end of their life, either through age or damage, they must be disposed of appropriately. They must not be sent to landfill. Please check with your local authorities how to appropriately dispose of Li Ion batteries in
What are GST08 cables? GST08 cables are cables used with the ANIMATE system to transport the low-voltage energy between elements (e.g. between the QF30 PSU, QIKPAC battery and TUF-HP USB module. Do you need more information? Our expert team are ready to answer any other questions that you may have.
For use in public areas; is there any locking mechanism to secure the QIKPAC? Yes. QIKPAC CARRY can be secured directly using a standard Kensington Lock cord, or, locked into a QIKDOC using the QIKDOC locking mechanism which requires a tool to release. Do you need more information? Our expert
If I connect two 24V QIKPAC together does that make 48V? No, the QIKPAC Batteries are designed to connect in parallel, so by connecting QIKPAC together you do not increase the voltage (which remains at 24-30V depending on charge state), you simply increase the total battery capacity. Where one QIKPAC
Are there any IP ratings for ANIMATE? e.g. use in Wet Rooms IP ratings identify levels of protection of people from, and water ingress to, hazardous parts. Within the ANIMATE range, the user-facing TUF-HP/ARC modules are completely low voltage (under 30V DC) and as there are no hazardous parts it
what is the lifespan of a QIKPAC battery The lifespan of a battery is best defined in terms of “charge cycles”. Where Li-ion batteries are allowed to drain to 0% from a top charge of 100% (as is commonplace for mobile phones), they will exhibit a decay in power storage
Is there a theft protection for the QIKPAC battery and CHARGER BASE? Yes. The QIKPAC CARRY can be secured directly using a standard Kensington Lock cord. QIKPAC Batteries can only be recharged using a proprietary cable or charging dock, making them less appealing as a target for theft, as they
What is Sleep Mode? Sleep Mode is the state that a QIKPAC Battery is initially delivered in and is also a state that the QIKPAC Battery will enter if it has been discharged too far. Charging the QIKPAC will automatically bring it out of Sleep Mode. Sleep Mode can also
What international approvals does the battery have? Battery Operational Safety – IEC/UL 62133; Transportation – UN38.3, Electromagnetic Interference – EMC (EU) and UK, and FCC (US), Materials – ROHS, REACH. Do you need more information? Our expert team are ready to answer anyother questions that you may have. get in
For use in public areas; is there any locking mechanism of the GST08? Yes we have a locking clip for the ANIMATE GST08 connectors. Do you need more information? Our expert team are ready to answer anyother questions that you may have. get in touch with an expert Looking for
Do you accept returns of QIKPAC batteries? OE does accept returns of unopened QIKPAC batteries to our Virginia facility. The return shipping cost will be chargeable to the customer and there will be a 25% restocking fee. It is a legislated requirement for transporting Lithium Ion batteries that they be
How can I check the charge status of a QIKPAC Battery? A short press of the orange button will cause an indication, with Blue LEDs, of the charge status of the battery, in increments of 20%. If multiple QIKPAC are connected, only one of the QIKPAC Batteries needs to be
Is QIKPAC safe? It must always be recognised that whilst safe to use, Li-ion batteries always have a very small risk of thermal runaway, albeit as little as 1ppm or less – and in this regard, a customer should carry out a risk analysis for their specific application, taking into
Can any device be powered from ANIMATE? e.g. flat screens, printers. ANIMATE is primarily designed to power mobile devices, such as phones, tablets or laptops that take up to 60W (we have 100W solutions under development, but as no Type-C devices currently draw 100W then it is not considered urgent)
Can QIKPAC be mounted internally to the furniture and if so, how is the button accessed and LEDs seen? Can QIKPAC be mounted internally to the furniture and if so, how is the button accessed and LEDs seen? Do you need more information? Our expert team are ready to answer
Can the QIKPAC power multiple TUF-HP? Each QIKPAC Battery has two GST08 output connectors, each one capable of fully powering two TUF-HP modules, through GST08 cables and a splitter (ie: 4 x TUF-HP per QIKPAC). However, the likelihood is that every TUF will not simultaneously be asked to provide full
Can QIKPAC Batteries be removed to charge at a charging station, rather than in the furniture? If QIKPAC Batteries are panel mounted, a QIKPAC Removal Tool is available to enable this. Instructions on the use of the QIKPAC Removal Tool are available online. Do you need more information? Our expert
What if my device does not use 24V? ANIMATE QIKPAC batteries run on 24V DC power. If accessory products run on alternate voltages, an adapter (DC converter cable) is required to step down the voltage. OE’s ARC series of wireless chargers run on 9V (ARC80 and ARC-G) and 19V (ARC-H).
Why do I need a PSU and TUF-HP rather than a single module? ANIMATE has been developed for installation into a wide variety of furniture applications, many of which have limited space for the user interface (ie: the USB connectors). By separating the brains (TUF-HP) from the brawn (PSU, Power
How are watt-hours calculated? • Watt-Hours (Wh) are calculated as : Watts x Time (Hours)• 1 Watt x 1 Hour = 1 Wh• 1 Watt x 10 Hours = 10 Wh (e.g. standard cell phone battery)• 200 Watts x 1 Hour = 200 Wh (e.g. 200 Watts used in 1
What do the LEDs mean on QIKPAC? The LEDs provide a visual indication of the battery status: when it is in use (a short press of the button to gives a 5-second display of the charge status), when it is charging (the LEDs will continually flash to indicate charge status)
Can ANIMATE power my height-adjustable table? The QIKPAC battery can power your height-adjustable table in a couple of different ways: Integrated battery power – QIKPAC battery By building batteries into the desk, you keep your furniture free of a mains cable and plug, and still provide power to the height-adjustable
