| CUT-OUT DIMENSIONS | COMPATIBLE UNITS | SURFACE THICKNESS (MIN/MAX) | NOTES | |
|---|---|---|---|---|
 | Ø80.00mm hole (Ø3.15") | PIXEL PIXELTUF PIXELARC PLUTO PORT PAGODA | 1.00mm to 40.00mm (0.04" to 1.57") | Fixing nut can be screwed in place once tightened |
 | Ø127.00mm hole (Ø5") | PANDORA PANDORARC | 1.00mm to 42.00mm (0.04" to 1.65") | Fixing nut can be screwed in place once tightened |
 | Ø60.00mm hole (Ø2.36") | PIP | 1.00mm to 30.00mm (0.04" to 1.18") | 15.00mm to 30.00mm for rear exit PIP only |
 | 160.00 x 61.00 R3.00 MAX (6.3" x 2.4" R0.12"MAX) | PLATEAU 2G | 18.00mm to 32.00mm (0.71" to 1.26") | |
 | 213.00 x 61.00 R3.00 MAX (8.39" x 2.4" R0.12"MAX) | PLATEAU 3G | 18.00mm to 32.00mm (0.71" to 1.26") | |
 | Ø50.00mm hole (Ø1.97") | POP | 22.00mm only (0.87") | |
 | 365.00mm x 70.00mm R12.00 MAX | QIKDOC | 12.00mm to 39.00mm | |
 | 280.50mm to 79.50mm R5.00 MAX | QF PARTNER | 13.00mm to 40.00mm | |
 | 193.00mm x 132.00mm R5.00 MAX | PEAK 60 | 8.00mm to 30.00mm (using standard fixing tabs) | Deep fix brackets are available for thicker surfaces. Enquire for further details. |
 | 272.00mm x 132.00mm R5.00 MAX | PEAK 80 | 8.00mm to 30.00mm (using standard fixing tabs) | Deep fix brackets are available for thicker surfaces. Enquire for further details. |
 | 140.50mm x 52.50mm R3.00 MAX | PUMA 2G | >1.45mm | |
 | 193.50mm x 52.50mm R3.00 MAX | PUMA 3G | >1.45mm | |

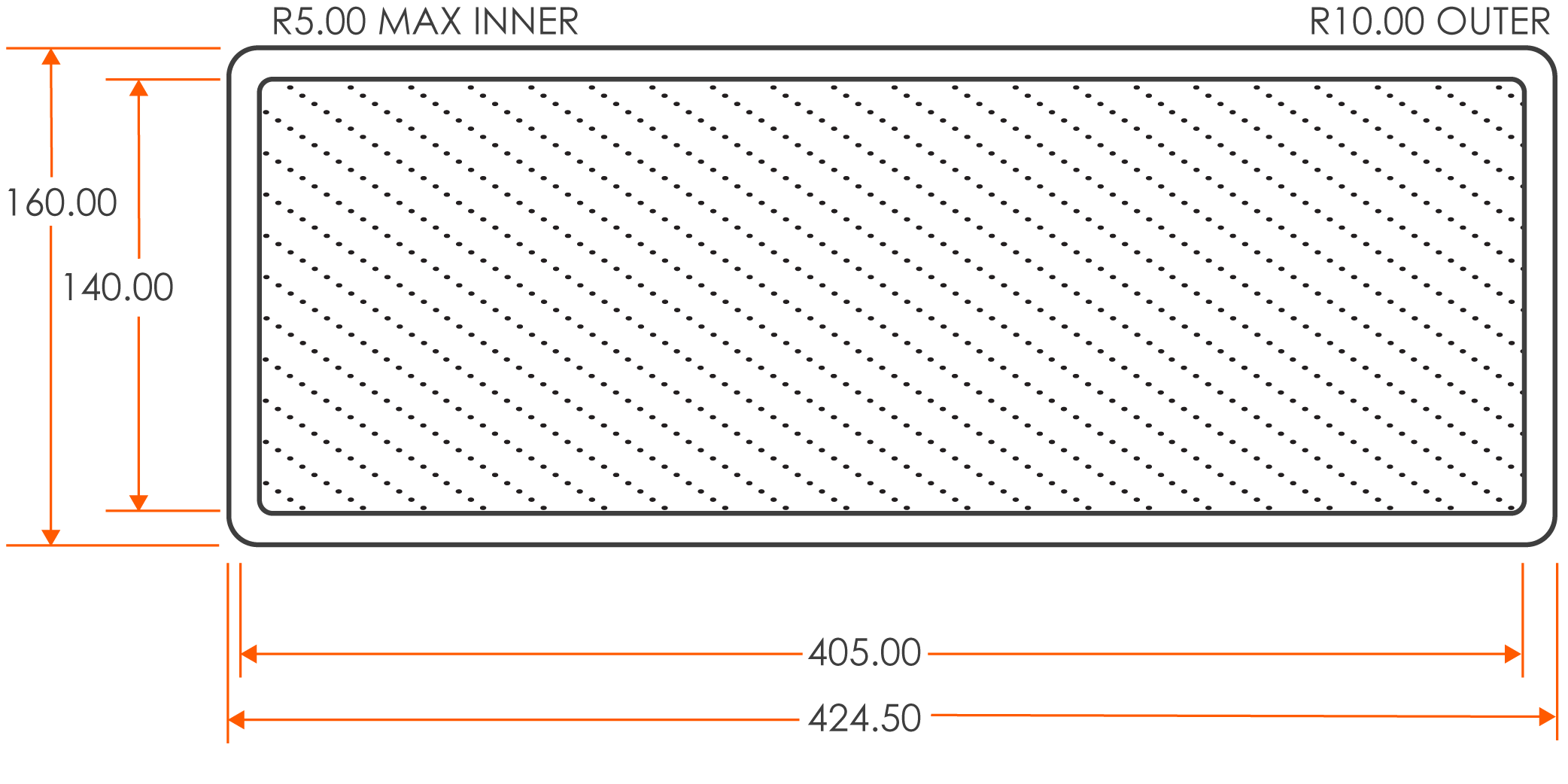

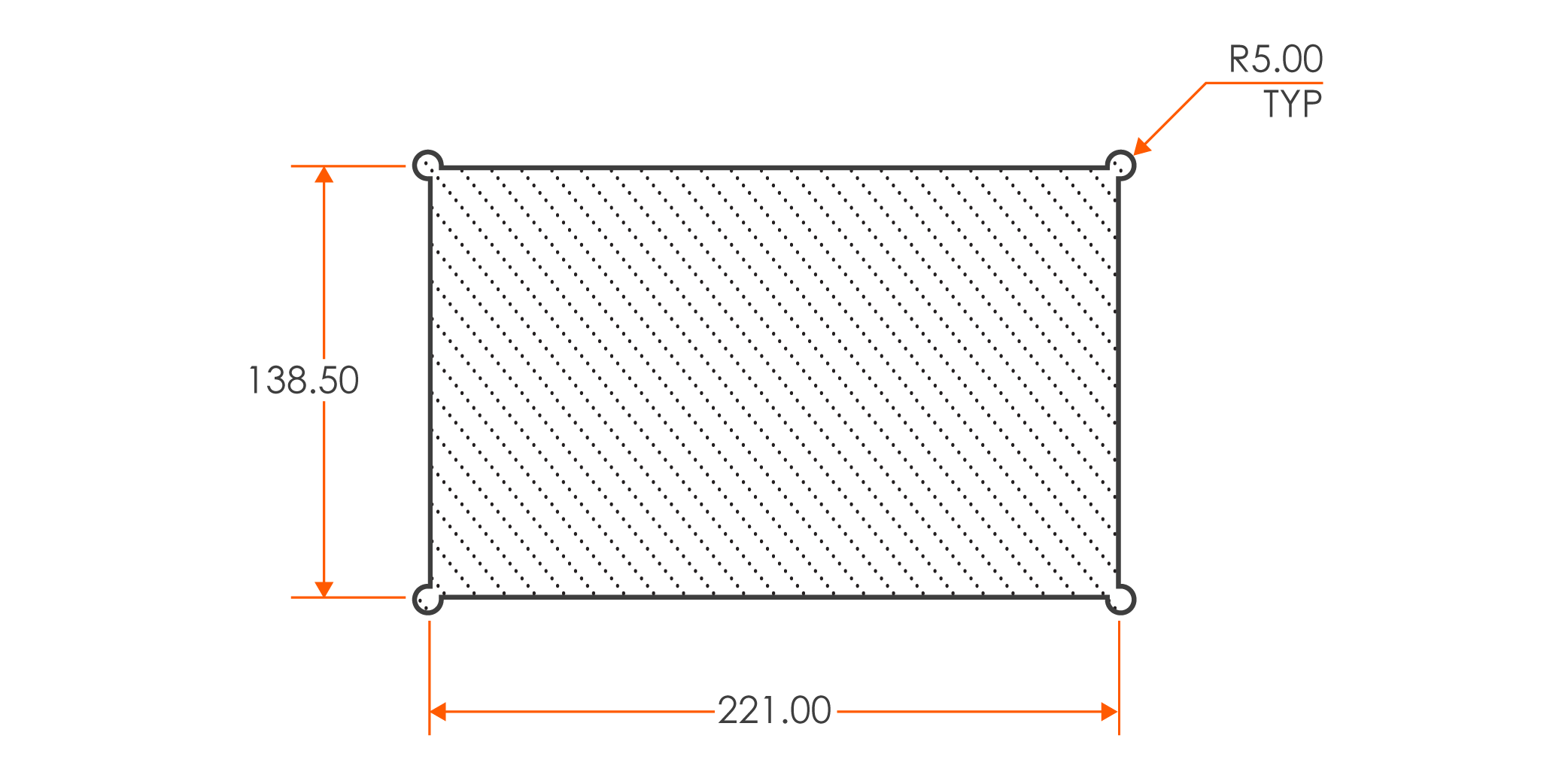

 | 221.00mm x 138.50mm R5.00 MAX | PMPY 25 | >15.00mm | |

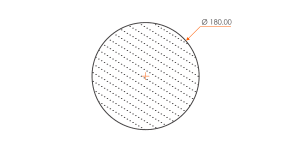

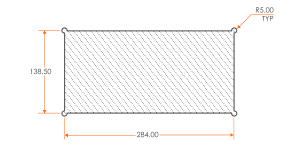

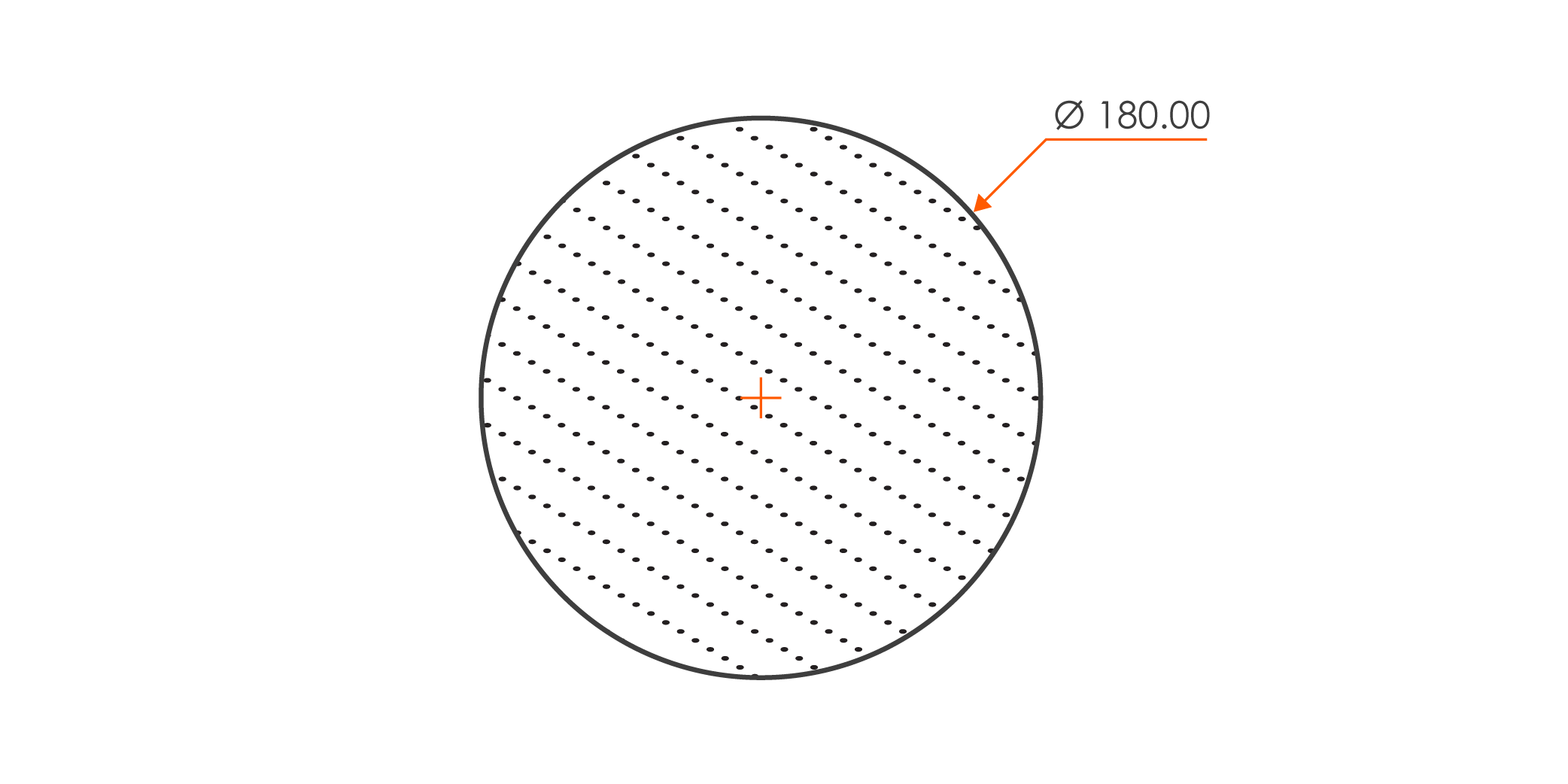

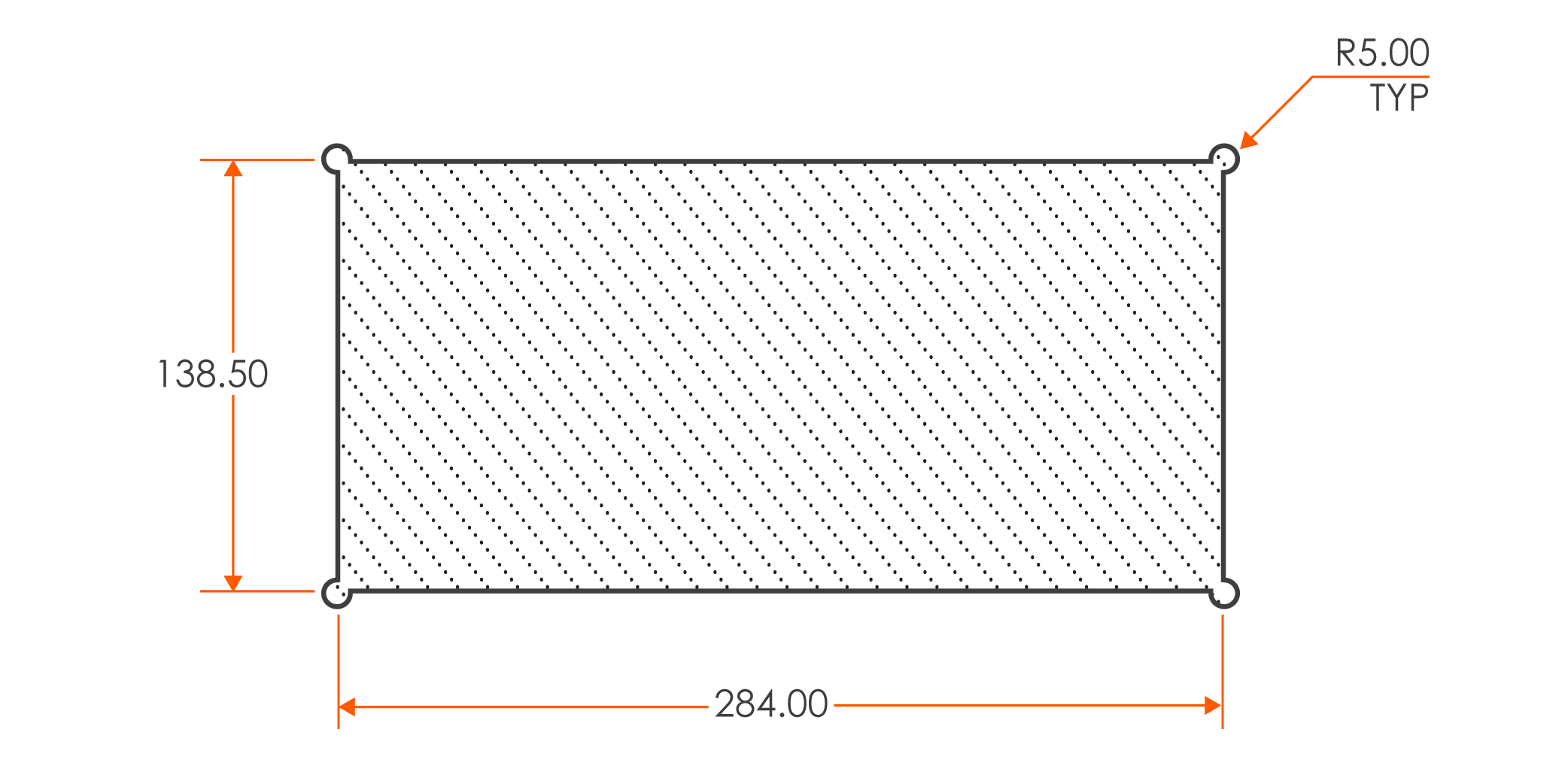

 | 284.00mm x 138.50mm R5.00 MAX | PMPY 45 | >15.00mm | |
 | 142.00 x 70.00mm R2.00 MAX | PODIUM 2G | 8.00mm to 30.00mm | |
 | 248.00 x 70.00mm R2.00 MAX | PODIUM 4G | 8.00mm to 30.00mm | |
 | 286.00mm x 146.00mm R5.00 MAX | QF TARDIS | 1.00mm to 30.00mm | RAISED fitting shown. Flush fitting option also possible. |
 | INNER 100.00mm x 80.00mm. OUTER 106.50mm x 86.00mm R5.00 | PIVOT 10 | >3.00mm | |
 | INNER 180.00mm x 80.00mm. OUTER 185.50mm x 86.00mm R5.00 | PIVOT 25 | >3.00mm | |
 | INNER 299.00mm x 80.00mm. OUTER 305.00mm x 86.00mm R5.00 | PIVOT 47 | >3.00mm | |
 | Ø50.00mm hole with 4x pilot holes 46.00mm apart about the centre of the main hole. | PROTON 10 | >1.50mm | |
 | R25.00 slot with centres 53.00mm apart, with 4x pilot holes 46.00mm apart about the centre of the main hole. | PROTON 20 | >1.50mm | |
 | 192.00mm x 132.00 R5.00 MAX | PRISM + PLATINUM 30 | 20.00mm to 40.00mm | |
 | 272.00mm x 132.00mm R5.00 MAX | PRISM + PLATINUM 45 | 20.00mm to 40.00mm | |
 | 430.00mm x 132.00mm R5.00 MAX | PRISM + PLATINUM 75 | 20.00mm to 40.00mm | |
 | 184.00mm x 55.50mm R5.00 MAX | QIKFRAME 25 | 3.00mm to 32.00mm | 3.00mm to 13.00mm standard bracket. 18.00mm to 32.00mm deep fix bracket. |
 | 290.00mm x 55.50mm R5.00 MAX | QIKFRAME 45 | 3.00mm to 32.00mm | 3.00mm to 13.00mm standard bracket. 18.00mm to 32.00mm deep fix bracket. Includes QIKFRAME 45 POLY and QIKFRAME 45 CAST |
 | 2x Ø60.00mm holes with a pitch of 58.00mm centre to centre. A channel of 30.00mm MIN cut between the holes | PIP2 | 3.50mm to 38.00mm | Alternatively, a Ø60.00mm slot with 58.00mm C/C can be used |
 | 3x Ø60.00mm holes with a pitch of 58.00mm centre to centre. A channel of 30.00mm MIN cut between the holes | PIP3 | 3.50mm to 38.00mm | Alternatively, a Ø60.00mm slot with 116.00mm C/C can be used |
DISCLAIMER
The recommended methods of installation shown are for the purposes of guidance only, and OE accepts no responsibility for any damages, injuries, or losses incurred as a result of incorrectly installed electrical products into furniture. It is crucial to ensure proper installation, and we highly recommend hiring a licensed electrician or qualified professional for this task.
Before cutting any holes into your furniture, please check the dimensions of the actual units on arrival to ensure an accurate fit.
