qikfit axxess


DISCONTINUED

Features

• Part of the QIKFIT system

• Add TUF-R HP or 25W USB modules with TUF | PROTECT

• Choice of QIKFIT POWER MODULES and data solutions

Product Highlights

Product Description

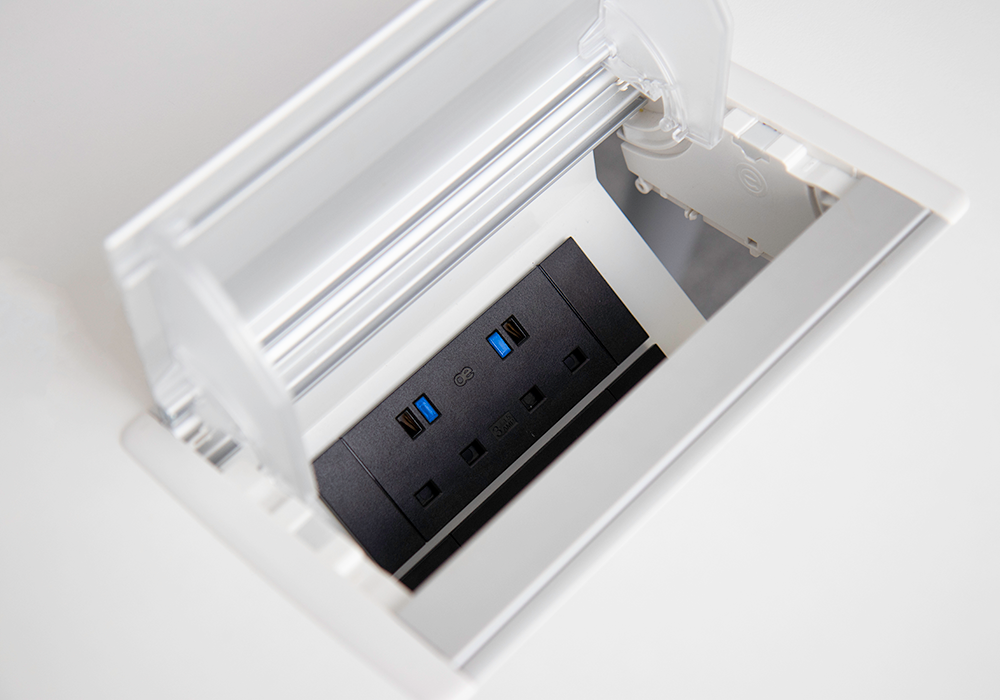

QIKFIT AXXESS combines a near flush aluminium hinged lid assembly that opens to reveal a sturdy powder-coated steel power and data compartment with cable storage area. The compact QF AXXESS 25 unit can be fitted with a 2 socket QIKFIT power module or QIKFIT TUF 30W plus up to 5 data and AV connectors, making it ideal for single desks or small meeting tables. For larger tables, choose QF AXXESS 45 with either 4 power sockets, or 2 sockets and two USB charging ports, plus up to 9 data/AV connections!

We test every pin on every connection in every socket

All units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.

  • Cable options:
    • Compatible with Wieland GST18i3 Male and female connectors
  • Materials:
    •  frame & Lid: Anodised aluminium extrusion
    • moulded polycarbonate end caps
    • Power/Data box: Powder coated mild steel

all your questions answered

Q.

What can be specified in QF AXXESS 25?

A.

The QIKFIT AXXESS 25 can be configured with the following QIKFIT module combinations, in each of the two stacked apertures:


• 1 x QIKFIT 2G power module or

• 1 x QIKFIT TUF plus 2 x QF05 Data/AV modules or

• 5 x QF05 Data/AV modules

Q.

What can be specified in QF AXXESS 45?

A.

The QIKFIT AXXESS 45 can be configured with the following QIKFIT module combinations, in each of the two stacked apertures:


• 1 x QIKFIT 2G power module plus 4 x QF05 Data/AV modules or

• 1 x QIKFIT 3G power module (+ QF3 spacer) plus 2 xQF05 Data/AV modules or

• 2 x QIKFIT 2G power modules or

• 1 x QIKFIT 2G power module plus 1 x QF15 TUF 30W/HP module or

• 2 x QF15 TUF 30W / HP modules (requires two power cords, and at least one must be with the 90° female connector) or

• 9 x QF05 Data/AV modules
