pro pixel 100w

power unit with integrated PSU

Features

Replaceable high power TUF C+C module
Built in PSU providing 100w power
Flush desk mount

Product Highlights

Product Description

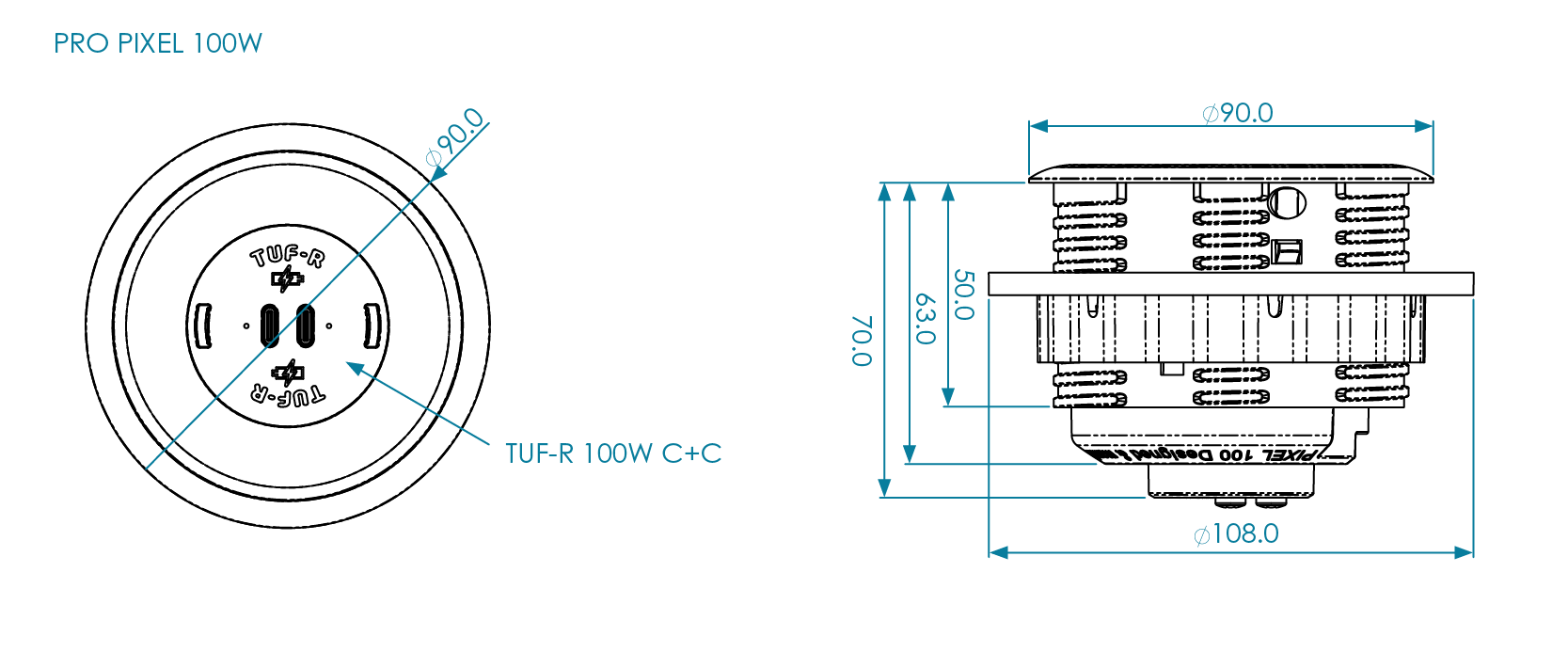

Meet the new generation of PRO PIXEL 100w USB unit, with our cutting edge replaceable double C USB puck, featuring an integrated 100w PSU. Flush mounted into the same cutout as the original pixel, this upgrade provides streamlined high power with low impact.

*product features subject to change whilst in development

We test every pin on every connection in every socket

All units are manufactured using ISO9001 quality controlled components
and practices and are 100% tested before dispatch.

Technical information

Cable options:
PRO PIXEL 100W may be hardwired to
• mains AC plug
• male Wieland GST connector for “soft wiring” e.g. connection to under-desk power modules
• direct to a floor socket via a starter cable
Materials:
• main body & back mouldings: high-strength and flame retardant polycarbonate
• OE “42mm” modular power socket /TUF: polycarbonate fascias Custom metal fixings available, e.g. to attach to steel sections in soft furnishing.

Downloads

PRO PIXEL 100W Datasheet

Fitting instructions

TUF replacement instructions

PRO PIXEL 100W image pack

CE Declaration

3D model

all your questions answered

Q.

Where can PRO PIXEL 100w be installed?

A.

PRO PIXEL 100W can be mounted vertically in a panel or furniture, or horizontally into a desk top with a standard 80mm grommet.

Q.

Can the 100W TUF be replaced?

A.

Yes, the TUF module is replaceable from the front. The PSU behind it, however, is built in to the unit.
