Transform passenger experience with high powered flush mounted angled USB charger

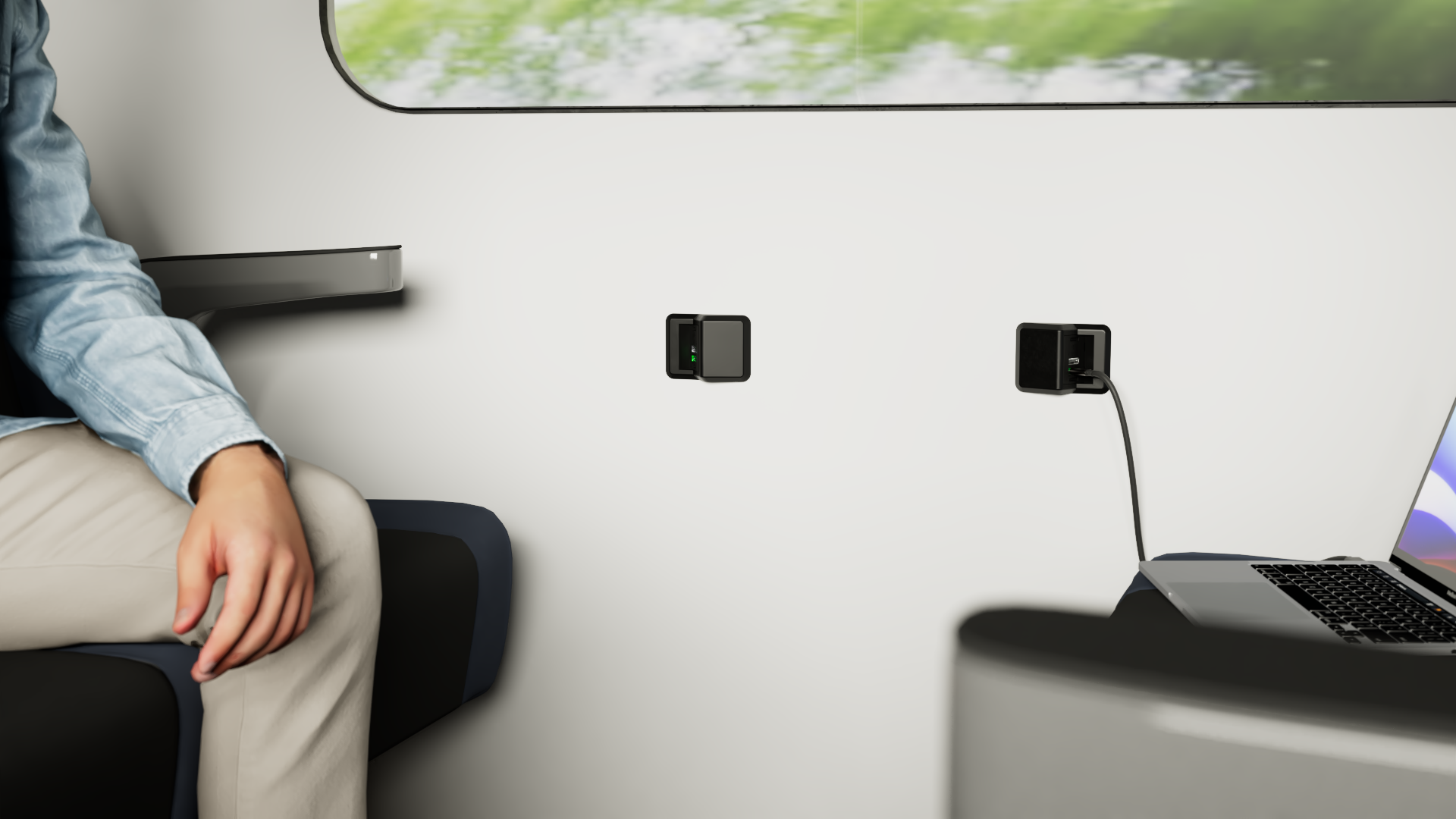

This innovative charging solution seamlessly integrates into the interior side panels of passenger carriages, ensuring effortless access while maintaining sleek aesthetics. The angled housing was specifically designed for trains with reduced wall thickness, where conventional USB Modules cannot be installed
Use the email form below to receive more information on our new USB outlet
APEX - Angled USB outlet
Equipped with both USB Type A and high-power USB Type C outlets (delivering up to 60 watts), the module caters to a wide range of passenger devices—from smartphones to laptops. Its angled design ensures optimal usability, directing the outlets toward the user for convenient plug-and-play access.

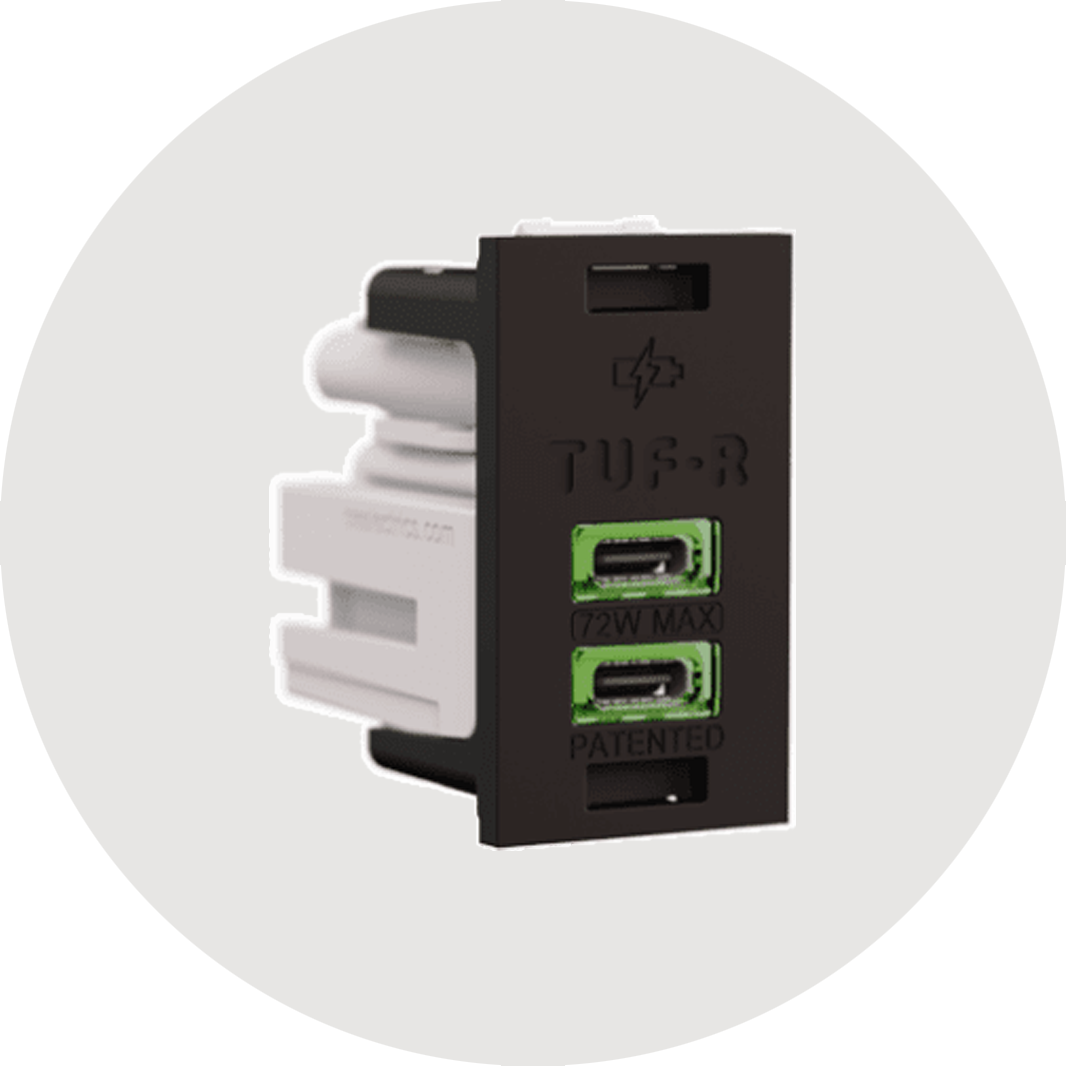

QF05 TUF-R CC
High Power QIKFIT module: QF05 TUF-R with two USB Type C outlets. The TUF-R module can be replaced on site in seconds if damaged with a simple tool provided by OE.

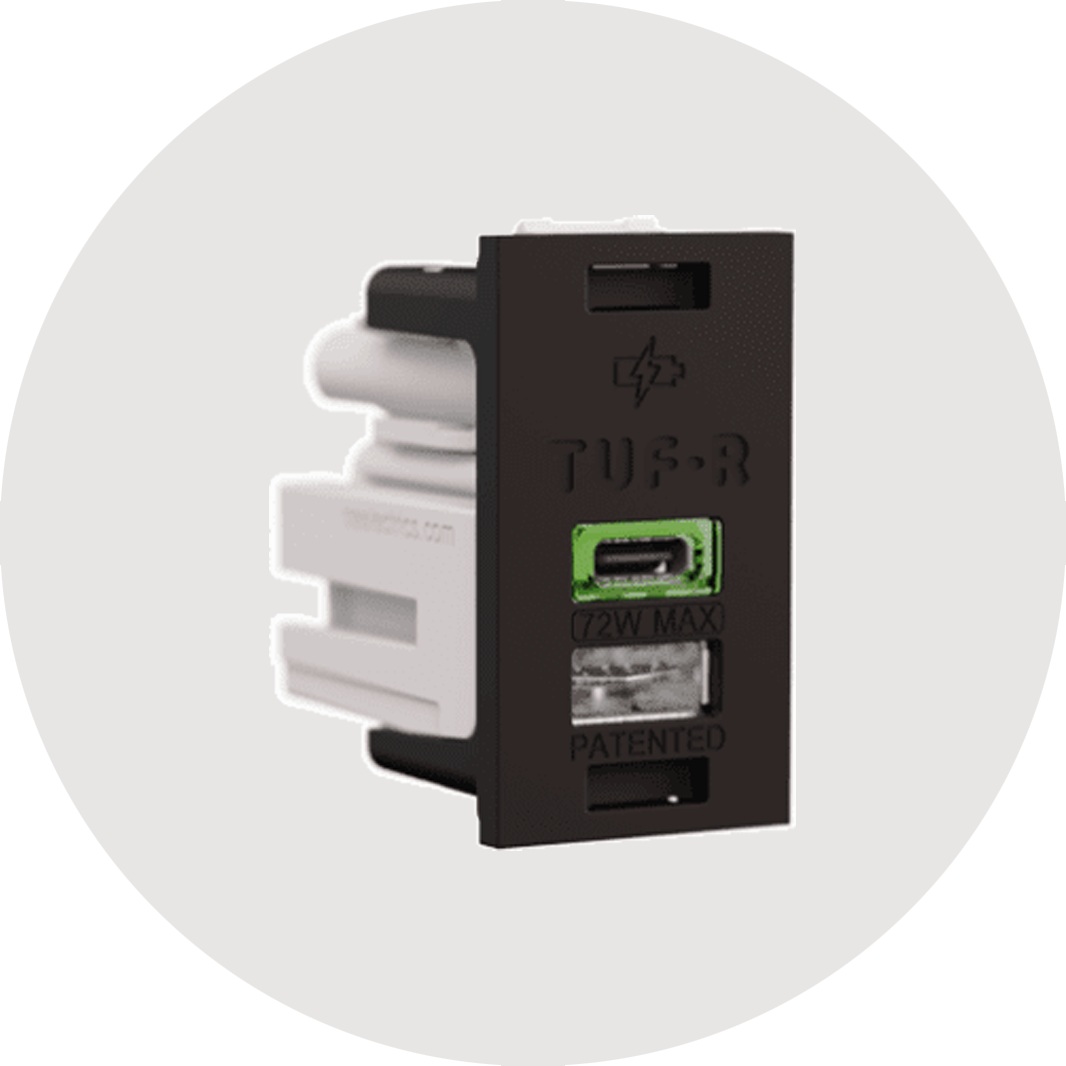

QF05 TUF-R AC
High Power QIKFIT module: QF05 TUF-R with one USB Type C outlet and one USB Type A outlet. The TUF-R module can be replaced on site in seconds if damaged with a simple tool provided by OE. This module can also be upgraded to a twin C module if required.
SAFETY
Safety and reliability are non-negotiable in the rail industry, and our module delivers with TUF-Protect. This advanced suite of features offers:
- Continuous Temperature Protection: Prevents overheating for consistent performance.
- Internal Voltage Protection: Safeguards against power surges.
- Short Circuit Protection: Ensures safe operation in all conditions.
- Reversible USB A & C Outlets: Simplifies passenger use.
- Certified to IEC 62368-1 and UL62368-1 (cTUVus) standards, it is one of the safest USB modules available, continuously monitoring USB health to protect passengers and their devices.
COMPLIANCE
EN 50155:2021
EN 45545-2:2020
EN 61373:2010
